Electrocardiogram (ECG) is an important diagnostic tool for the diagnosis of cardiac abnormalities. In this paper, the authors introduce a study on different types of noises, For example, Power Line Interference (PLI), Motion Artifacts, Electrode Contact Noise, Muscle Contraction, Base Line Drift, Electromyography/noise (EMG), Instrumentation Noise, etc. To eliminate the above mentioned noises, various algorithms of adaptive filter are used and authors also used Discrete Wavelet Transform (DWT) to remove Random Artifacts and filter with constant coefficients as because, hum manner is not accurate. To solve this problem, digital filters are used such as Adaptive filters as Least Mean Square (LMS), Normalized Least Mean Square (NLMS), Recursive Least Square (RLS), sign LMS, sign-sign LMS algorithms and Discrete Wavelet Transform (DWT). The performance of algorithms are evaluated by Signal to Noise Ratio (SNR), Mean Square Error (MSE), Percentage Root Mean Square (%PRD) and Normalized Mean Square (NMSE). In comparison to various adaptive algorithms, SSLMS gives better result for all parameters with MSE = 0.0262, NRMSE = 0.0033 , %PRD = 0.3331, RMSE = 0.331, and SNR = -4.3914 .
The ECG signal is the most important tool for the diagnosis and finding of various cardiac problems. When ECG signal is recorded, it may be corrupted by different types of noises such as, Power line interference, Base line Wandering, Motion Artifacts, Electrode contact noise, Muscle Contraction, Instrumentation, Electro Surgical noise, etc [1]. The power line interference is the main source of interference due to 50Hz, because it lies in the ECG signal band (0.05-100Hz). This artifacts affects the ST Segment and degrade the quality of Signal, Frequency Resolution and gives high amplitude signals in ECG that hide the features which are important for clinical monitoring and diagnosis. Removal of these artifacts in ECG signal is an important task for better diagnosis. Removal of high resolution ECG signal from unwanted ECG signal which are contaminated with background noise is an important work of research. The ECG signal enhancement is to filter the desired signal component from the undesired artifacts. So to present an ECG that facilitates ECG and accurate interpretation is a necessity. Many techniques have been reported in the literature to address ECG enhancement using adaptive techniques [1-13]. Adaptive filtering techniques permit to find time varying potentials and to track the variations of signals [3]. Thakor et al. proposed an LMS based adaptive recurrent filter to acquire the impulse response of normal QRS complexes and then applied it for arrhythmia detection in ambulatory ECG recordings. In case LMS algorithm operates on an instantaneous basis, then weight vector is updated for each sample. The computational complexity can be reduced by using the sign based algorithms, namely, the signed regressor algorithm, the sign algorithm and the sign-sign algorithm[14, 15]. In order to work with both the complexity and convergence issues, the authors proposed various adaptive filter structures based on Normalized Signed Regressor LMS (NSRLMS) algorithm, Normalized sign LMS (NLMS) algorithm and Normalized Sign-Sign Least Mean Square error (NSSLMS) algorithm. These algorithms find less arithmetic complexity because of the sign present in the algorithm and best filtering capability because of the normalized terms [16, 17]. Discrete Wavelet Transform (DWT) can be realized by dividing the signal into low frequency and high frequency coefficients. All the adaptive algorithms are compared with the performance parameters such as Signal to Noise Ratio (SNR), Mean Square Error (MSE), Normalized Mean Square Error (NMSE), Percentage Root square Difference (%PRD), and after the comparison sign LMS gives better result.
MIT-BIH arrhythmia database [17] records the ECG signal. It consist of 48 annotated records obtained from 47 subjects studied by the arrhythmia laboratory of bath Israel hospital in Boston between 1975 and 1979. The database contains several records in the 100 series, which were chosen for the authors for research purpose where every record in the arrhythmia database is slightly over 30 min. It has a sampling frequency 360 Hz. Header file includes information about leads like the patient's age, sex and medications [18, 19].
Power line interference noise occurs due to two mechanisms - Capacitive Coupling and Inductive Coupling [20]. Capacitive coupling refers to the transfer of energy between two circuits by means of coupling capacitance present in the two circuits. Inductive coupling is caused due to mutual inductance between two conductors. Capacitive coupling and inductive coupling is responsible for high frequency and low frequency noise respectively. Inductive coupling is more dominant for power line interference in ECG. The power line interference noise is due to 50 Hz or 60 Hz depending on the power supply [21].
It is caused due to variations in the position of the heart with respect to the electrodes and changes in the propagation medium between the electrode position and the heart. This causes changes in the amplitude of the ECG signal, as well as frequency baseline shifts. Poor conductivity between the electrodes and the skin reduces the amplitude of signal [21].
Motion artifacts occurs due to the changes of baseline caused by electrode motion. The main cause of motion artifacts are vibrations, movements, etc. In this ECG signal the baseline drift occurs at low frequency (less than 1Hz). Motion artifacts depend on the electrode properties and electrolyte properties [22].
EMG noise is caused due to the contraction of muscles besides the heart. EMG noise is random in nature and modelled by Gaussian distribution function. The mean of this noise is assumed to be zero and variance depends on the environmental changes. Frequency of EMG noise is between 100-500 Hz [22].
Noises also occurs when measuring instruments. Major source of such noises are electrical probes, cables, Signal amplifier and Analog to Digital converter. Another types of noise is colour noise or flicker noise is a low frequency electronic noise[22].
Adaptive filter works as a linear filter, transfer function of adaptive filter which is controlled by variable parameters (coefficient). Figure 1 shows the block diagram of an Adaptive Filter. Its function is to adjust the variable parameter according to optimization algorithm and adapt according to the change in signal characteristics in order to minimize the error. It involves changing of filter coefficients over time. The vector representation of input signal [23] X(n) is given as,
Signal at the input of adaptive filter is corrupted with noise. It becomes the sum of desired signal d(n) and noise e(n).
Adaptive filter has Finite Impulse Response (FIR) structure.
Its impulse response is equal to the filter coefficient. The coefficients for a filter of order N [23] is,
Output of adaptive filter is y(n) given by,
Error signal is
Each and every time the instant variable filter updates the filter coefficients,
where ΔW(n) is a correction factor for filter coefficients
It works only on error at the current time, hence filter weights are only adapted based on the error at the current time [23, 24].
According to this algorithm, updated weight is given by
where µ is step size.
It is an upgraded version of LMS. It updates the coefficient of adaptive filter. Step size of NLMS algorithm varies according to time [23, 24] .
According to this algorithm, the updated weight is given by,
where µ (n) = µ / [mod of x (n) 2]
In this algorithm, the sign function is applied to the error signal to update the filter coefficient of an adaptive filter [23, 24].
According to this algorithm, the updated weight is given by,
In this algorithm, the sign function is applied to both input and error signal to update the filter coefficient of the adaptive filter [23].
According to this algorithm, the updated weight is given by,
For analysis of non-stationary signals, wavelet transform is a powerful method. ECG signal are non-stationary and time varying signals. So wavelet transform is suitable for the analysis of ECG signal. Wavelet allow both time and frequency analysis of signals. Discrete Wavelet Transform analyze the signal as a linear combination of the sum of the product of Wavelet coefficients [20].
If x(n) is the recorded signal or ECG signal, xn, represents the noisy signal and xm is the filtered ECG signal, the Mean Square Error (MSE) is defined as[20, 24],
The Normalized form of NMSE is,
The Normalized form of NRMSE is,
percentage Root mean square error Difference (%PRD) is,
Signal to Noise Ratio in dB (SNR) is given as,
The values of various performance evaluators (SNR, %PRD, MSE, NRMSE, RMSE) of noisy (colour noise), Adaptive RLS filtered and Adaptive NLMS filtered, Adaptive LMS filtered, Adaptive sign-LMS filtered and Adaptive QDRLS filtered ECG signal are evaluated as shown in Table 1. The high values of SNR and low values of %PRD and MSE are good. From Table 1, the authors find that noisy signal's SNR is very low, but all the filtered signal have high SNR after filtering the signal that have low %PRD and MSE. Noisy ECG signal (Gaussian noise) are filtered using various adaptive algorithms and parameters shown in Table 2. Similarly Table 3 shows the result for noisy ECG signal due to the power line interference noise. In the result, Figure 2, Figure 3, Figure 4, Figure 5, Figure 6 shows Gaussian noise added in ECG signal and filtered using NLMS, RLS, S-LMS, LMS, QDRLS algorithms respectively. After studying the result, the authors finds out the better adaptive filter for removal of ECG noise and showing better result for the performance parameters. Figure 7, Figure 8, Figure 9, Figure 10, Figure 11 shows colour noise added with ECG signal and then filtered using various adaptive algorithms such as NLMS, RLS, SS-LMS, S-LMS, QDRLS respectively. Similarly, Figure 12, Figure 13, Figure 14, Figure 15, Figure 16 shows the power noise. Table 1 shows that comparison of different algorithms using performance parameters for colour noise. Table 2 shows that, comparison of different algorithms using the performance parameters for Gaussian noise. Similarly Table 3 shows the performance evaluation for power line interference noise.

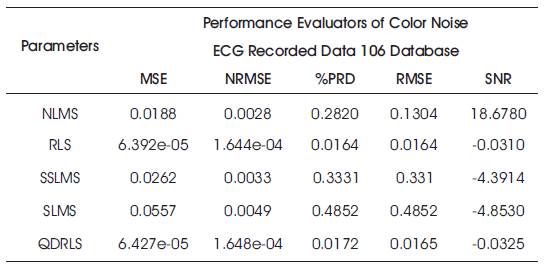

Table 1. Comparison of different Algorithms using Performance Parameters for Colour Noise

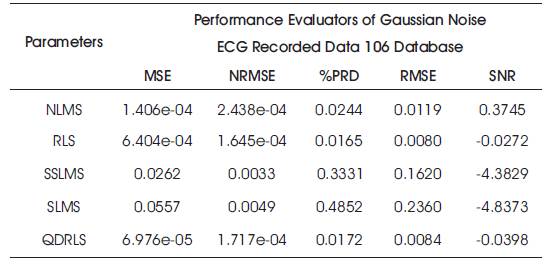

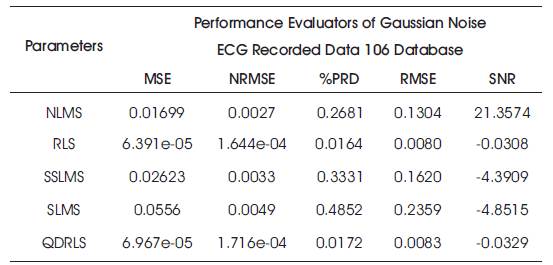

Table 2. Comparison of different Algorithms using Performance Parameters for Gaussian Noise
Table 3. Comparison of different Algorithms using Performance Parameters for Power Line Noise

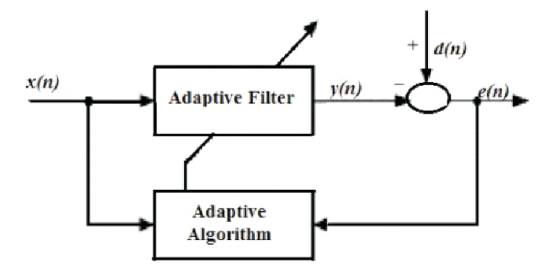

Figure 1. Block Diagram of Adaptive Filter [23]

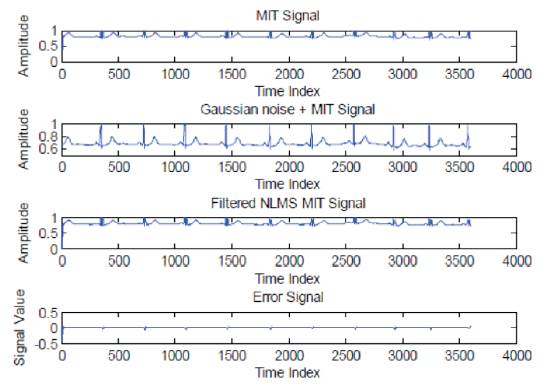

Figure 2. Gaussian Noise added with ECG Signal and Filtered NLMS algorithms

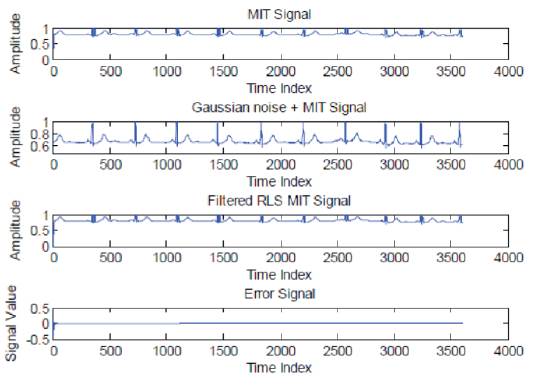

Figure 3. Gaussian Noise added with ECG Signal and Filtered RLS algorithms

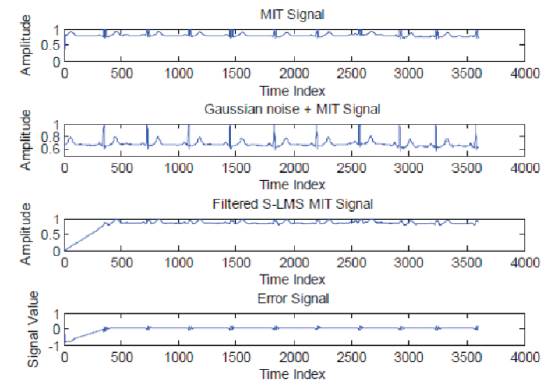

Figure 4. Gaussian Noise added with ECG Signal and filtered using SLMS Algorithm

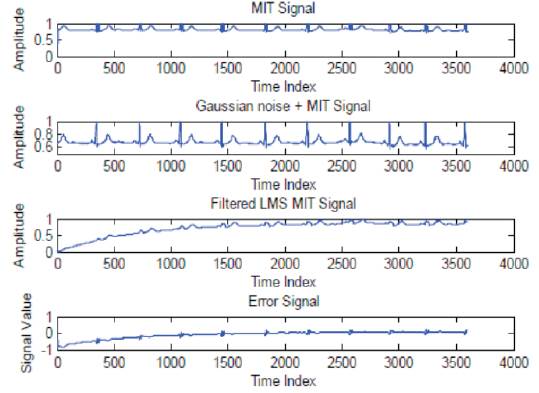

Figure 5. Gaussian Noise Filtered using LMS Algorithm

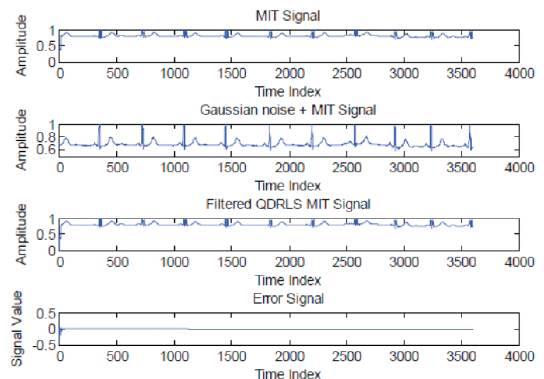

Figure 6. Gaussian Noise Filtered using QDRLS Algorithm

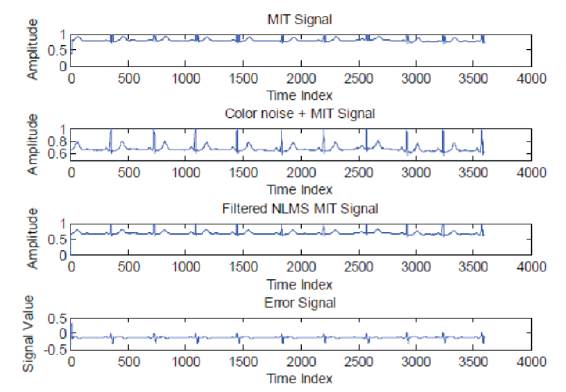

Figure 7. Colour Noise Filtered using NLMS Algorithm

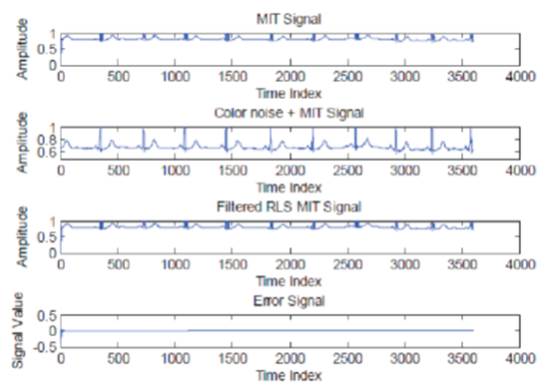

Figure 8. Colour Noise Filtered using RLS Algorithm

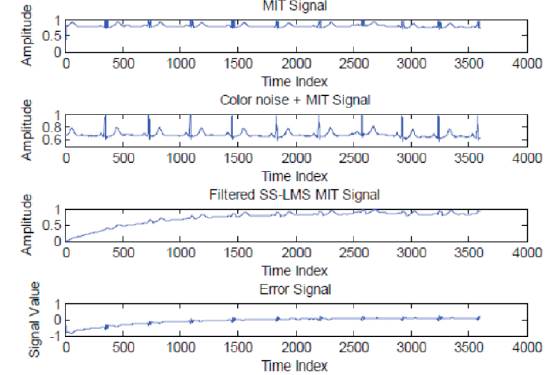

Figure 9. Colour Noise Filtered using SSLMS Algorithm

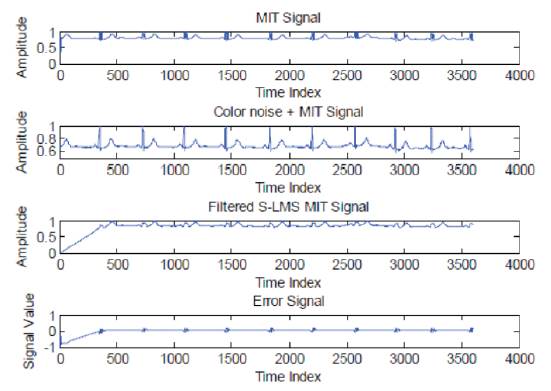

Figure 10. Colour Noise Filtered using SLMS Algorithm

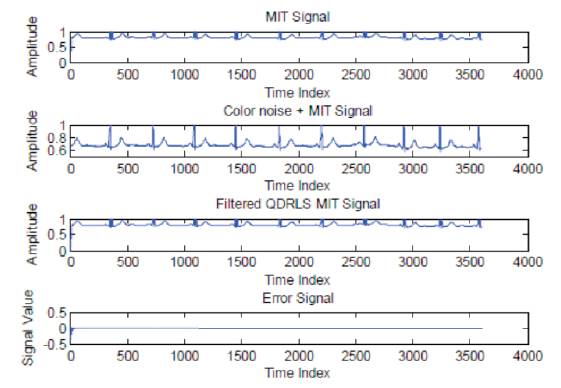

Figure 11. Colour Noise Filtered using QDRLS Algorithm

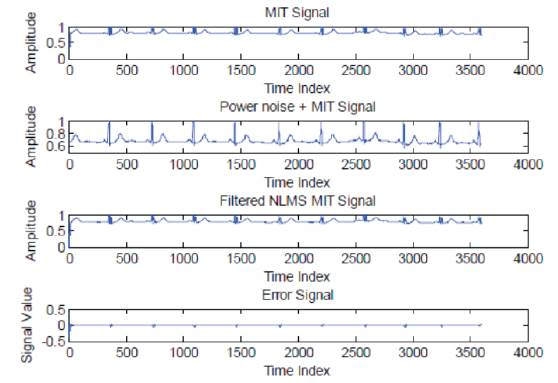

Figure 12. Power Noise Filtered using NLMS Algorithm

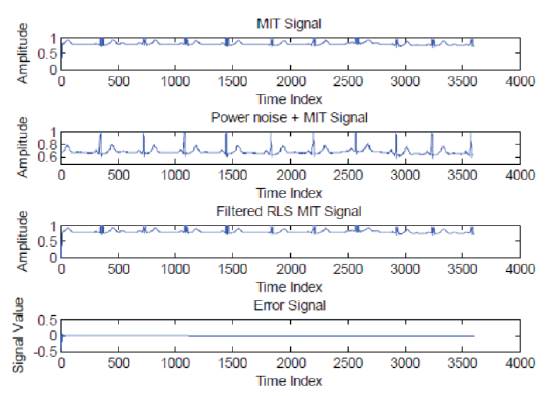

Figure 13. Power Noise Filtered using RLS Algorithm

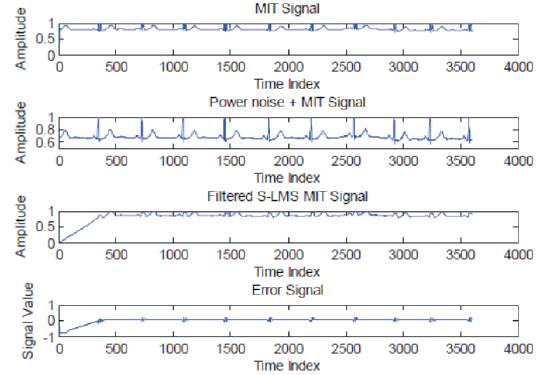

Figure 14. Power Noise Filtered using SLMS Algorithm

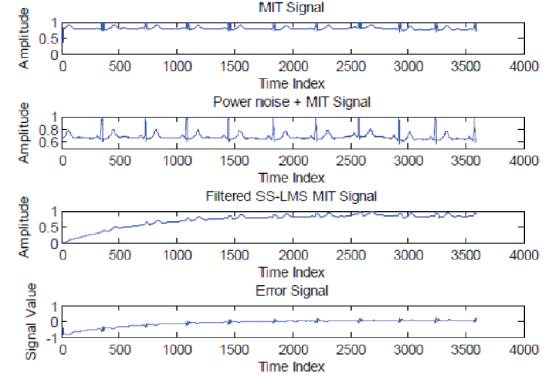

Figure 15. Power Noise Filtered using SSLMS Algorithm

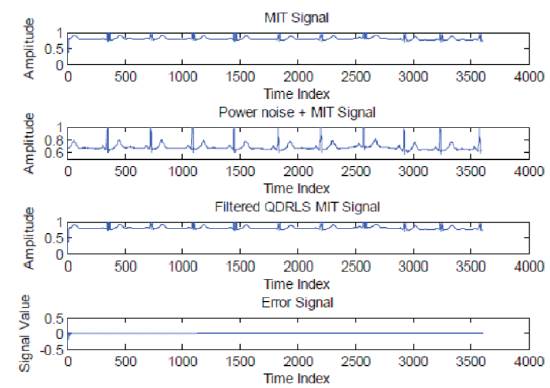

Figure 16. Power Noise Filtered using QDRLS Algorithm
In this paper, simulation result is found in sequence to verify the performance of various techniques, artifacts like baseline wander, Power line interference, EMG noise and muscle artifacts with introduced in the ECG signal and the unwanted ECG signal is introduced to the filters. To ensure the stability of the outcomes, the entire method was repeated over the 7 ECG segments. The filters output SNR, MSE, %PRD finds the filter quality of separate desired signal from the undesired signal.
In this work, the authors have implemented various algorithm of adaptive filter for removing artifacts contaminated with ECG signal during recording. The adaptive algorithms LMS, NLMS, RLS, Sign-LMS, SSLMS were capable to remove noises such as white noise, colour noise, muscle artifacts, electrode contact noise, baseline wander noise, composite noise and power line interference properly. The performance of all algorithms was evaluated by parameters such as SNR, %PRD, MSE, NMSE. In comparison to various adaptive algorithms, SSLMS gives better result for all parameters with MSE = 0.0262, NRMSE = 0.0033, %PRD = 0.3331 and RMSE = 0.331, SNR = -4.3914.
