Division segments a picture into unmistakable areas containing every pixel with comparable qualities. To be significant and valuable for picture examination and elucidation, districts ought to emphatically identify with delineated protests or elements of interest. Important division is the initial step from low-level picture handling, changing a gray scale or shading the picture into one or more different pictures to the abnormal state picture portrayal as far as components, items, and scenes[1, 2] are concerned. The accomplishment of picture investigation relies upon unwavering quality of division; however an exact apportioning of a picture is the far most part of an exceptionally difficult issue. The authors first discuss about from the instance of the monochrome and static pictures. The basic issue in the division is to parcel a picture into locales. Division calculations for monochrome pictures are one of the accompanying two fundamental classes. The first is Edge-based division. The second one is Region-based division. Another technique is to utilize the limit. It has a place with an Edge-based division. Division is a significant apparatus in numerous domains, including industry, human services, space science, picture handling, remote detecting, activity picture, content based picture, design acknowledgment, video and PC vision, and so on. It is the principal stage in any push to dissect or translate a picture naturally. It crosses over any barrier between low-level and abnormal state picture preparing. A specific sort of picture division technique can be found in any application, including the discovery, acknowledgment, and estimation of articles in a picture[3, 4, 5].

The principle goal of the paper is to improve the picture’s continuous applications. Division is to group pixels into remarkable picture districts, i.e., areas relating to individual surfaces, items, or characteristic parts of articles. With the change of PC preparing abilities and the expanded utilization of shading picture, the shading picture division is increasingly worried by the scientists [6, 8]. Shading picture division techniques can be seen as an augmentation of the dim picture division strategy in the shading pictures, yet a hefty portion of the first dim picture division strategies can't be specifically connected to shading pictures. This requires enhancing the technique for unique dark picture division strategy as per the shading picture which have the component of rich data or examining another picture division strategy, which is extraordinarily utilized as a part of the shading picture division. In K-implies method, we can get different sections as per our bunch size. K-implies bunching strategy is to be connected for getting better execution in the applications like face acknowledgment and video recovery. Execution increments as indicated by bunch sizes. More is the bunch estimate, more is the precision rate. In the event that bunch size builds multifaceted nature and pace is likewise an increment. To defeat this as of late, watershed calculation was presented and has included points of interest over established strategies [7, 9, 10].

The human eyes have modified capacity for brilliance, which we can just, distinguish many Gray-scales anytime of complex picture, yet can recognize as many hues. In like manner, with the quick change of PC preparing abilities, the shading picture handling is in effect increasingly worried by individuals base (Peck, 2002). In general, the shading picture division is additionally utilized as a part of numerous media applications, for instance; so as to successfully examine vast quantities of pictures and video information in computerized libraries, they all should be accumulated into a registry, sorting and capacity. The shading and surface are two most essential components of data recovery in light of its substance in the pictures and video. Along these lines, the shading and surface division is frequently utilized for ordering and administration of information; another case of mixed media applications is the spread of data in the system (Ahmed, et al., 1998). At present, some picture division techniques have accomplished genuinely great outcomes in some particular applications, yet they generally have a ton of restrictions. For instance, dim level edge division is not reasonable for pictures with complex items; edge identifying technique is hard to get the needed fringe for the obscured pictures and the mind boggling edge pictures.

In many examples of acknowledgment and PC vision applications, the shading data can be utilized to upgrade the picture examination handled and enhances division comes that about contrasted with dark scale-based methodologies. Therefore, awesome endeavors have been made as of late to research division of shading pictures because of requesting needs.

The techniques for shading picture division particularly connected to the shading picture division approach is not really as for the dark scale pictures. The majority of proposed shading picture division strategies are the blend of the current dim scale picture division strategy on the premise of various shading space. Usually, the utilized strategies for shading picture division are histogram limit, include space grouping, district based approach, in light of edge discovery techniques, fluffy strategies fake neural system approach, in view of physical model techniques, and so on.

Division calculations for monochrome pictures depends on one of the two essential properties of dim scale values.

1.1 Discontinuity

The approach is to parcel a picture in light of sudden changes in dim scale levels. The chief regions of enthusiasm inside this class are location of disengaged focuses, lines, and edges in a picture.

1.2 Similarity

The central methodologies in this classification depend on limit, district developing, and locale part/ consolidating. Segmentation of a shading picture utilizing area developing alongside watershed calculation.

The main objective of the project is enhancing the image in real time applications. Segmentation is to cluster pixels into salient image regions, i.e., the regions corresponding to individual surfaces, objects, or natural parts of objects. With the improvement of computer processing capabilities and the increased application of color images, the color image segmentation are more and more concerned by the researchers. Color image segmentation methods can be seen as an extension of the gray image segmentation method in the color images, but many original gray image segmentation methods cannot be directly applied to color images. This requires improving the method of original gray image segmentation method according to the color image which has the feature of rich information or research a new image segmentation method, specially used in color image segmentation. In K-means technique, we can get various segments according to the cluster size. Kmeans clustering technique is to be applied for obtaining better performance of the applications like face recognition and video retrieval. Performance increases, according to cluster sizes. More is the cluster size, more is the accuracy percentage. If a cluster size increases, complexity and speed is also increased. To overcome these, watershed algorithms were recently introduced and has added advantages over classical methods. The performances of the algorithms are quantitatively assessed using different quality metrics namely: Peak Signal-to-Noise Ratio (PSNR), Mean Square Error (MSE), Color Quality Measurement (CQM), and visual appearance.

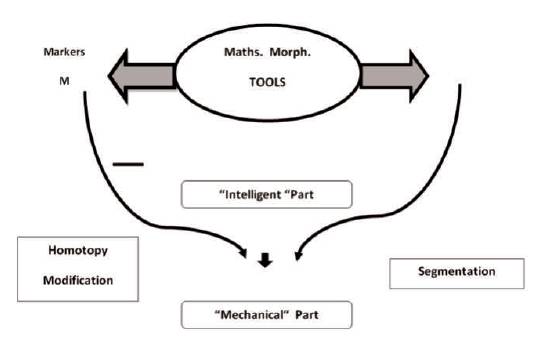

Image segmentation consists of selecting a marker set M first, pointing out the objects to be extracted, and then a function f quantifying a segmentation criterion as shown in Figure 1.

Figure 1. Image Segmentation

The segmentation process is therefore divided into two steps : An “intelligent” part whose purpose is the determination of the basic morphological tools, namely the watershed transform and image modification.

This technique demonstrates its efficiency in various domains of image analysis for both binary and gray-tone pictures. This methodology is also helpful in threedimensional segmentation, in color image contouring, or for the extraction and tracking of objects in time sequences.

3.1 Watershed Algorithm

Picture division techniques fall into five classes: Pixel based division, Region based division, Edge based division, Edge and locale Hybrid division, and Clustering based division. The K-Means grouping procedure is an outstanding methodology that has been connected to fathom low-level picture division assignments. This grouping calculation is united and its point is to improve the dividing choices in light of a client characterized starting arrangement of bunches that is overhauled after every cycle. This system is computationally effective and can be connected to multidimensional information, however, the outcomes are significant just if the homogenous non-finished shading districts characterize the picture information [11, 12]. The utilizations of the bunching calculations for the division of complex shading finished pictures are confined by two issues. The primary issue is created by the beginning condition, while the second is produced by the way that no spatial (territorial) attachment is connected amid the space dividing process. The principle thought of information grouping is that we will utilize the centroids or models to speak to the tremendous quantities of bunches to achieve the two objectives which are, "lessening the computational tedious on the picture handling", and "giving a superior condition on the sectioned picture for us to pack it".

3.2 Introduction to Watershed Segmentation

Watershed transform has worried with awesome consideration of an effective morphological picture division apparatus. It is like district based methodology; it starts the developing procedure from each territorial least point, each of which makes a solitary locale after the change. Watershed calculation joins both the intermittent and comparability properties effectively. It performs well when it can recognize the foundation area and the forefront object. It depends on gray scale numerical morphology. Watershed is calculated by considering the versatile edge, N-dimensional convolution, versatile concealing, force minima for morphological handling with watershed calculation[12, 13].

The watershed change is the customary division method utilized as a part of dim scale scientific morphology and a bounteous writing that proposes a few handy usage of the calculation. Characteristically, the watershed is a dim level devoted change. Utilizing the watershed, the way to deal with portion multi-part pictures along these lines are not direct. The essential standard of the secular change is reviewed and the picked calculation is displayed.

The ideas of watersheds and catchment bowls are notable in geography. Watershed line’s partition singular catchment bowls. The North American Continental Divide is a course reading case of a watershed line with catchment bowls framed by the Atlantic and Pacific Oceans. Picture information might be translated as a topographic surface where the slope picture dim levels speak to heights. Locale edges relate to high watersheds and low-inclination area insides compare to catchment bowls. Catchment bowls of the topographic surface are homogeneous as in all pixels having a place with the same catchment bowl are associated with the bowl's area of least height (dim level) by a basic way of pixels that have monotonically diminishing elevation (dim level) along the way. Such catchment bowls, then speak to the locals of the portioned picture.

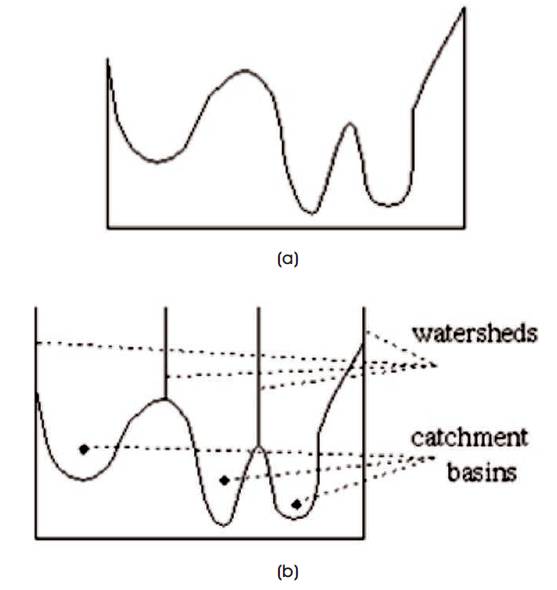

The idea of watersheds and catchment bowls is very clear and is shown in Figure 2. Early watershed techniques brought about either moderate or mistaken execution. The majority of the current calculations begin with extraction of potential watershed line pixels utilizing a nearby 3 x 3 operation, which are then associated into geomorphologic systems in ensuing strides. Because of the nearby character of the initial step, these methodologies are regularly off base.

Figure 2. One Dimensional Example of Watershed Segmentation, (a) Gray Level Profile of Image Data, (b) Watershed Segmentation-Local Minima of Gray Level Yield Catchment Basins, Local Maxima Define Watershed Lines

A watershed transformation was also introduced in the context of mathematical morphology - computationally demanding and therefore time consuming. Two basic approaches to watershed image segmentation.

The first begins with finding a downstream way from every pixel of the picture to a neighborhood least of picture surface height. A catchment bowl is then characterized as the arrangement of pixels for which their separate downstream ways all end up in the same elevation least. While the downstream ways are difficult to decide for constant elevation surfaces by computing the neighboring slopes, no standards exist to characterize the downstream ways extraordinarily for advanced surfaces.

The second approach is basically double in the first; rather than distinguishing the downstream ways, the catchment bowls fill from the base. Envision that there is a gap in every nearby least, and that the topographic surface is submerged in water - water begins filling all catchment bowls, minima of which are below the water level. On the off chance that two catchments bowls would converge as a consequence of further drenching, a dam fabricates the distance to most elevated surface height and the dam deals with the watershed line.

A proficient calculation depends on sorting the pixels in expanding request of their dim qualities, trailed by a folding step, comprising of a quick broadness first checking of all pixels in the request of their dark levels. Amid the sorting step, a shine histogram is figured. At the same time, a rundown of pointers to pixels of dim level h is made and connected with every histogram dark level, to empower direct access to all pixels of any dim level. Data about the picture pixel sorting is utilized broadly as a part of the flooding step. Assume the flooding has been finished up to a level (dim level, height) k. At that point, each pixel having dim level not exactly or equivalent to k has been now relegated as one of a kind catchment bowl mark. Next, pixels having dark level k+1 must be handled; every single such pixel can be found in the rundown that was set up in the sorting step - subsequently, every one of these pixels can be gotten to specifically A pixel having dim level k+1 may have a place with a catchment bowl named l ("el"), if no less than one of its neighbors, and conveys this mark Pixels that speak to potential catchment bowl individuals placed in a first-in first-out line and anticipate further preparing. Geodesic impact zones are processed for all decided catchment bowls is shown in Figure 3. A geodesic impact zone of a catchment bowl l_i is the locus of non-marked picture pixels of dim level k+1 that are adjacent with the catchment bowl l_i (bordering inside the locale of pixels of dim level k+1) for which their separation to l_i is littler than their separation to whatever other catchment bowl l_j.

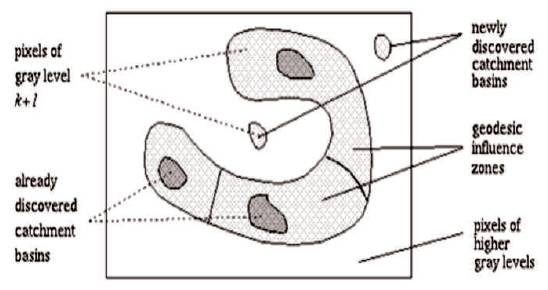

Figure 3. Geodesic Influence Zones of Catchment Basins

3.3 Segmentation using Morphological Watersheds

The concept of watershed is based on visualizing an image in three dimensions: two spatial coordinates and intensity. We consider three types of points:

• The point belonging to the local minimum.
• The point where a drop of water, if placed at the locations of these points, would fall to a single local minimum. It is called a catchment basin or watershed.
• The points where water would be equally likely to fall to more than one local minimum

3.4 Program Flow

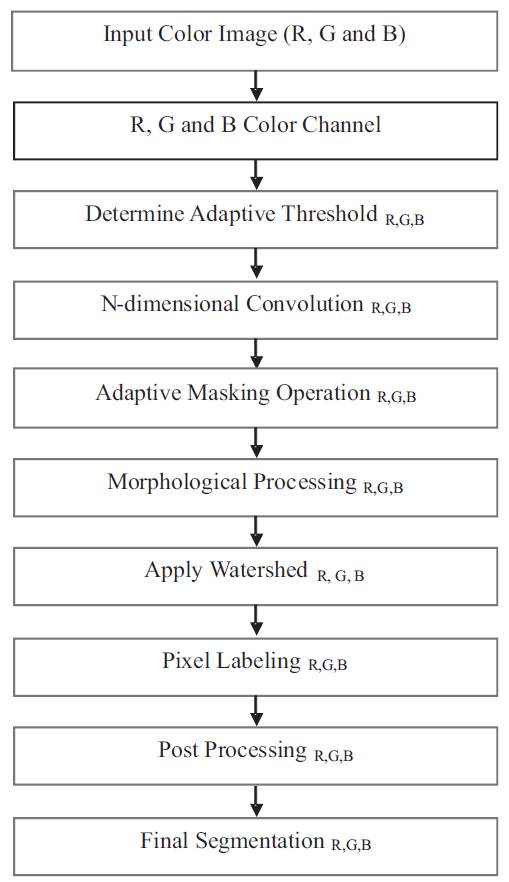

The overview of the proposed watershed method is shown in Figure 4. It can rapidly figure each locale of the watershed division. It is enhanced by considering adaptively selecting edge, versatile covering operation, neighborhood least data, and convolution capacity for smoothing the picture.

Figure 4. The Flowchart of the Proposed Modified Watershed Algorithm

3.5 Quality Metrics

The nature of the subsequent melded picture is of prime significance. Picture quality measurements are utilized to benchmark diverse picture preparing calculation by looking at the goal measurements. Examinations are completed on a number of dark scales and shading pictures to look at the exhibitions of DT-CWT fusion method with the DWT fusion method. To evaluate comparison, so many metrics were used commonly. Some of them and their implementation are described here, viz. Peak Signalto- Noise Ratio (PSNR), Normalized Cross Correlation (NCC), Structural Similarity (SSIM), Cross-Entropy (CEN), and Mean Square Error (MSE).

3.5.1 Peak Signal-to-Noise Ratio (PSNR)

The PSNR is most generally utilized as a measure of the nature of recreation of lossy pressure codes (e.g., for picture pressure). The sign for this situation is the first information, and the commotion is the mistake presented by pressure. At the point when looking at pressure codec's it is utilized as an estimation to the human view of reproduction quality, in this manner now and again one recreation may give off an impression of being nearer to the first than another, despite the fact that it has a lower PSNR (a higher PSNR would ordinarily show that the remaking is of higher quality). One must be to a great degree cautious with the scope of legitimacy of this metric; it is just convincingly substantial when it is utilized to think about results from the same codec (or codec sort) and the same substance. PSNR given as:

(1)

3.5.2 Root Mean Square Error (RMSE)

A commonly used reference-based assessment metric is the Root Mean Square Error (RMSE) which is defined as follows:

(2)

Where I (i, j) and K (i, j) are reference and fused images, respectively, and m and n are image Dimensions.

Image quality metrics are used to benchmark different image processing algorithms a by comparing the objective metrics. Experiments are carried out on color images. The results concerning on the experiments that have been conducted on different images, viz. yellow leafs, green leaf images are shown in Figures 5 and 6. To evaluate comparison, commonly used metrics are Peak Signal-to-Noise Ratio (PSNR), Color Quality Measurement (CQM) and Mean Square Error (MSE) and also visual quality is used for comparison as shown in Table 1.

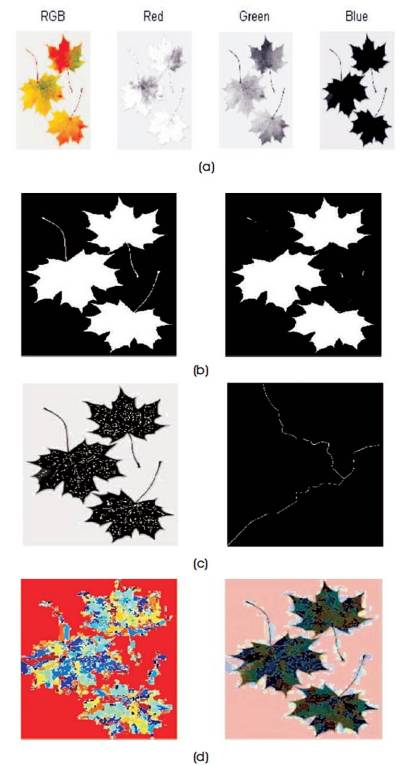

Figure 5. Experimental Results of Watershed Algorithm, [Database 1] (a) Extracted Original Image into R, G and B Channels, (b) N-dimensional Convolution Filtering and Masking, (c) Morphological Processing and Watershed Transform, (d) Post Processing and Output Image

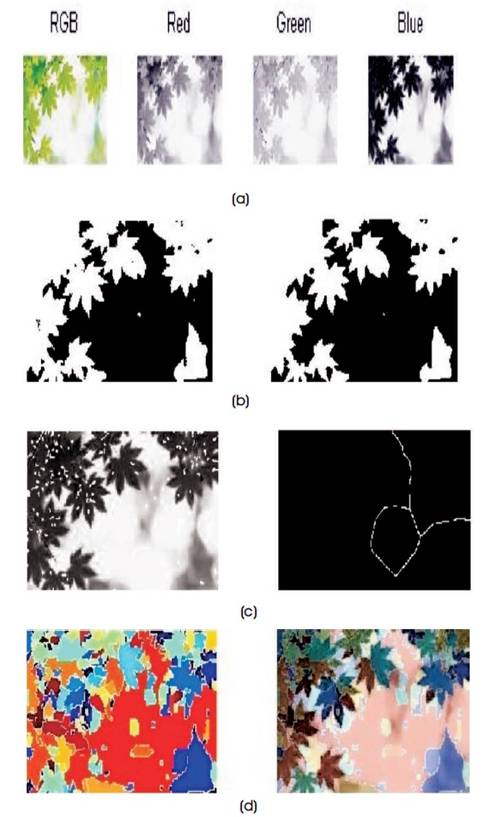

Figure 6. Experimental Results of Watershed Algorithm, [Database 2] (a) Extracted Original Image into R, G and B Channels, (b) N-dimensional Convolution Filtering and Masking, (c) Morphological Processing and Watershed Transform, (d) Post Processing and Output Image

Table 1. Quality Metrics of Different Images

The watershed segmentation techniques for color images provide better quantitative and qualitative results than thresholding and k means clustering at the expense of increased computation. It is also good at faithfully retaining textures from the input images. In this paper, a new image segmentation method based on adaptive threshold and masking operation with watershed algorithm has been presented whose goal is to overcome over-segmentation problem. This paper analyzes the drawbacks of the K means clustering. The qualitative results show that the algorithm outperforms the others. Consequently, the watershed segmentation approach can enhance the image segmentation performance. Similarly, it is worth noticing that the proposed method is less in computational complexity, which makes it appropriate for real-time application.
