The recent trend is to develop an embedded system for measurement and control of various physical parameters. Due to tremendous advancement in integrated chip design, a novel and promising microcontrollers are available. Using those microcontrollers, one can develop dedicated systems, which could be more reliable and accurate. The development of embedded systems, based on microcontrollers is rather a ubiquitous and innovative field (Patil & Ladgaonkar, 2013; Patil et al., 2017). Therefore, students and technologist are attracted towards this field. The concept of high-tech agriculture is evolving in modern agriculture, wherein instrumentations in agriculture play vital role for monitoring and controlling. Particularly, in case of greenhouse and polyhouse applications, the measurement and control of the parameters such as humidity, temperature, light intensity, soil moisture, etc. plays significant role on the yield of the crops (Pawar et al., 2013). Considering these facts, it is proposed to develop an embedded system for measurement of soil moisture for farm irrigation.

Many people attempted to build a device based on the 8051 microcontroller in the beginning. The applications of the 8051, however, are limited due to limited on-chip resources. As a result, more people are focusing on highperformance microcontrollers. PIC, AVR, and ARM series microcontrollers all have promising characteristics. Microcontrollers provide less number of codes, high code density, single cycle instructions and pipelining, from which the speed of execution is significantly increased. Moreover, recently the ARM microcontroller ensures 32-bit framework of data acquisition and processing. Therefore, using on chip resources of ARM LPC 2378, an embedded system is designed for measurement of soil moisture of the farm and results are presented in this paper.

On literature survey it is found that, various techniques for determining water content of soil, from simple manure gravimetric sampling to more sophisticated remote sensing and Time Domain Reflectometry (TDR) measurements, have been developed by different investigators (Roth et al., 1992; Topp et al., 2003). One common technique is to investigate the AC electrical properties such as, dielectric constant of soil. It is found that, the dielectric constant of the soil is sensitive to the moisture content of the same. Deploying appropriate calibration method, the dielectric constant measurement can be directly related to soil moisture (Topp et al., 1980). The measurement of soil moisture by using gravimetric method is the traditional method (Le Hégarat-Mascle et al., 2002). However, it is also found that, there are several different types of sensors commercially available in the market. In general, a manufacturer's calibration is commonly performed in a temperature controlled room, with distilled water and is easy to manage homogenous soil materials which are uniformly packed around the sensor (Chávez et al., 2011; Hignett & Evett, 2008). This calibration procedure produces a very precise and accurate calibration for the conditions tested (Chávez et al., 2011). However, in field conditions, variations in clay content, temperature, and salinity may affect the manufacturer's calibration (Pawar et al., 2013). Therefore, to enhance the reliability of the present system under investigation, a testbed must be developed in the laboratory before implementing it in farm.

Various soil moisture sensing sensors are available in the market, but for present system low cost and simple soil moisture sensor is designed in the laboratory and implemented to this dedicated application. On extensive study of literature, it is found that, the soil moisture sensors are of capacitive type and are used to measure the dielectric constant of the soil under test. The dielectric constant of the water is more than the dry soil. This is because of the fact that dry soil consists of very less number of charge carriers and hence the dielectric constant, which is mainly due to AC conductivity is very less. However, the water is conducting and hence the dielectric constant is high. Therefore, the dielectric constant of the soil is the function of concentration of water in the soil. Hence, by employing the principle of change in dielectric constant with the change in the water content of the soil, the soil sensor can be designed. However, to deploy the capacitive sensor, more complex electronic circuit is essential to design. Therefore, it is always suggested to employ the principle of change in resistance due to water content. Thus, based on this principle the sensor is designed to measure soil moisture. It is our own design and depicted in Figure 1.

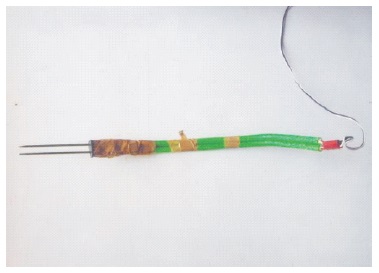

Figure 1. The Soil Moisture Sensor

It consists of two electrodes of stainless steel and are separated by a distance of 2 cm. These are fixed at one end and other ends are kept free to insert into the soil sample under investigation. The high quality co-axial shielded cable is used to connect these two electrodes. The electrodes are resistive and it has to be excited with the energy source. Therefore, the sensor is excited with 1.5 volt. This excitation with low voltage reflects the conductivity due to charge carrier concentration, which is expected and not due to excessive drift velocity. Due to electrical conductivity, the potential is developed. This potential is highly sensitive to concentration of water in the soil. This potential is applied to further electric parts. The characteristics of this soil moisture sensor electrode are studied. This sensor is most successful and provides ubiquitous resistive sensor. The feature of the soil moisture sensor is described below.

• Extreme low cost with volume pricing.
• Conductivity based.
• Probe does not corrode over time.
• Small size and rugged design for long term use.
• Consumes less than 600 A for very low power operation.
• Precise measurement.
• Measures volumetric water content (VWC) or gravimetric water content (GWC).
• Output voltage is proportional to moisture level.
• Wide supply voltage range.

It produces water dependent voltage in millivolt range. The response is very fast and highly reliable. Series probes measure the dielectric constant of soil in order to find its volumetric water content (Chavez et al., 2011). Since the dielectric constant of water is much higher than that of air or soil minerals, the dielectric constant of the soil is a sensitive measure of water content.

The hardware of the system called as circuit designed using ARM LPC 2378 microcontroller and depicted in the Figure 2. The designed system read very weak signal in millivolt range from the soil moisture sensor. In the design, it is necessary to isolate the sensor and rest of the circuits. Therefore, in order to provide better isolation, signal conditioning stage is wired using the very high input impedance instrumentation amplifier AD620. The gain of AD620 is adjusted to 1, so it is used here as buffer amplifier which helps to match the impedance between output stage of sensor and input stage of ARM microcontroller development board. This could help to maintain linearity between observed output of the system and input voltage of soil moisture.

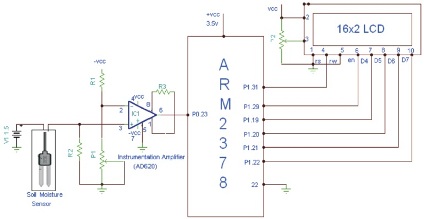

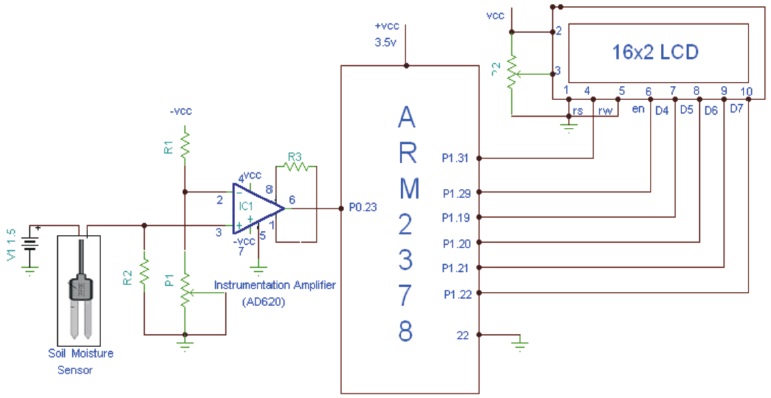

Figure 2. The Schematic of the System

By proper signal conditioning circuitry, the signal soil moisture dependant emf in mV range is produced which is further digitized by deploying on chip ADC of ARM with 10 bit resolution. However, as per the need of sophisticated instrumentation, the parameters must be represented in respective engineering units. Which means the amount of water content of soil must be measured in percentage unit. Therefore, the soil moisture is displayed in % unit and the calibration of the system is essential and the system is further subjected to the process of calibration.

Actually, hardware and firmware are the two dimensions of an embedded system. The firmware is developed in embedded C using Keilu Vision for ARM, Integrated Development Environment (IDE). The developed firmware is depicted through the flow chart as shown in Figure 3. After successfully compiling and building the developed firmware, the IDE provides the .hex file, which is embedded into the flash memory of the target device LPC 2378.

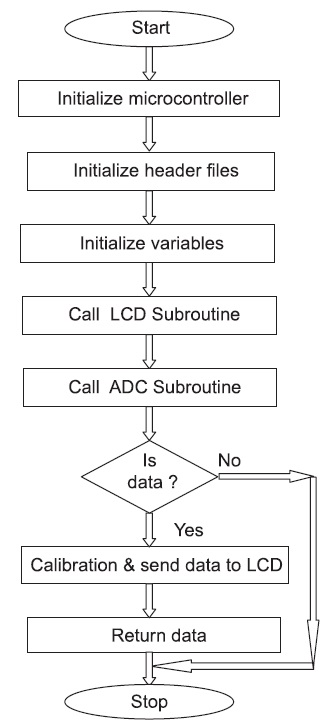

Figure 3. The Flow Chart of the Firmware

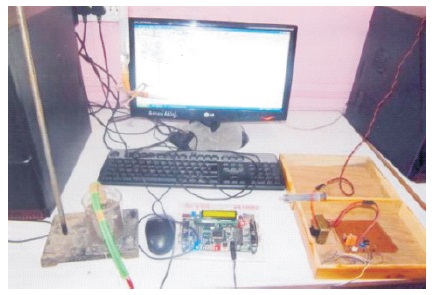

Emphasizing to the development, the embedded system for the measurement of the soil moisture using ARM LPC 2378 development board is designed and implemented. The place of implementation of the system is at the farm near to the crop. However, in order to perform experiment in the laboratory the testbed is designed. The soil sample under test is taken in the beaker of 500 ml capacity. The soil sample of 250 g is taken in the beaker. The density of the soil varies with nature of soil. The soil moisture sensor is inserted in these dry soil sample under test. The water is added, drop by drop, with the help of graduated burette and observation of relative moisture are recorded and presented in Table 1. The experimental set up is shown in Figure 4. The system is also implemented directly to measure the soil moisture at different places of the college garden as shown in Figure 5.

Figure 4. The Experimental Setup

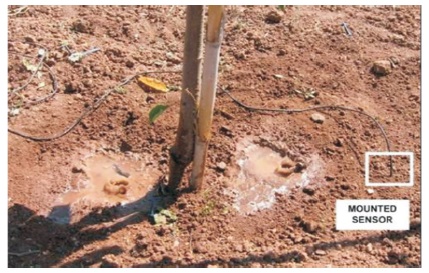

Figure 5. A Picture of the Mounted Sensor While Irrigating a Farm

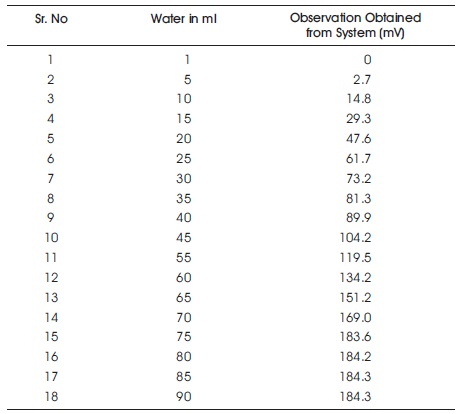

Table 1. The Relative Moisture Dependent emf

An embedded system is developed about ARM LPC 2378 microcontroller to measure soil moisture. To measure the water content of the soil, a typical sensor is specifically designed and the hardware designed produces emf, which is proportional to the content of water in the soil. However, it is expected to have the observations of soil moisture either in relative units or in absolute units. Therefore, before implementation, the system is calibrated in the respective units.

For calibration of the system a sample of dry soil, of 250 g is taken in the beaker of 500 ml. The sensor is inserted in the dry soil and the emf produced by the system is measured in the beginning and it has been '0' volt. The water, drop by drop, is added by means of graduated burette and values noted as shown in Table 1. The readings of emf are taken against water in ml and plotted as shown in Figure 6. On inspection of figure, it is found that the emf increases almost linear with the water content. It is also observed that when water its not absorbed in soil, it flows on surface of soil and the emf remains constant. This condition is considered as 100% wet soil. The data available is best fitted to the straight line. The empirical relation obtained is,

Soil moiture = (observed emf+1.46)/2.26

This relation is incorporated in the firmware. Thus, the system is calibrated to the soil moisture in the gravimetric unit.

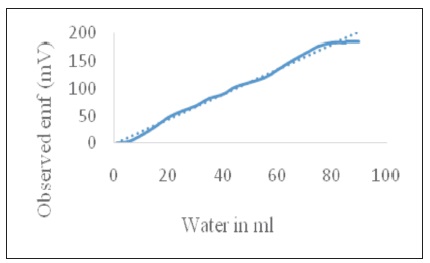

Figure 6. Percentage of Water Content in Soil Against Voltage

Soil analysis is a valuable tool for the farm as it determines the inputs required for efficient and economic productivity. The reliability of the present system under investigation has been enhanced by a testbed developed in the laboratory and implemented in farm. The measurement of soil moisture by gravitational method has been done. Thus the ARM LPC2378 embedded system is successfully developed to measure the soil moisture and it is working with great reliability and precision.
