Medical imaging is referred to as the measures and procedures that are utilized to generate images of the human body (or parts thereof) for clinical purposes (medical procedures seeking to reveal, diagnose or examine disease) or medical science. Broadly medical imaging is a division of biological imaging that encompasses radiology (in the wider sense), radiological sciences, endoscopy, medical thermography, medical photography and microscopy (e.g. for human pathological investigations) [1]. Measurement and recording techniques that do not generate image results principally, like the electroencephalography (EEG) and magneto encephalography (MEG) and others, but generate data that can be represented as maps can be classified as kinds of medical imaging [2]. Contemporary imaging technologies include Computed Tomography, Positron emission tomography (PET), Magnetic resonance imaging (MRI) [3], [4] and Ultrasound (Echocardiogram).

The visualization of muscles and internal organs, their size, structures and possible pathologies or lesions of the heart assisting in the detection of a considerable number of heart problems can be achieved with the aid of echocardiogram. Echocardiography aids in the diagnosis of cardiovascular system besides making precise assessment of the velocity of blood and cardiac tissue at any given point using wither pulsed or continuous wave Doppler ultrasound. This permits the estimation of cardiac valve areas and function, abnormal communications between the left and right side of the heart, leaking of blood through the valves (valvular regurgitation) [8], and determination of the cardiac output in addition to the ejection fraction. Flow-related measurements can be enhanced by combining it with Doppler ultrasound. At present, Doppler echo- cardiography plays a vital role in the premature determination of the kind of surgery to be carried out for adjusting the mitral valve regurgitation [5], [6], [7].

The severity of the regurgitation is the vital determinant of the development of ventricular dilatation and dysfunction in case of mitral regurgitation [a valvular heart disease also known as mitral insufficiency]. Thus the precise estimation of regurgitant volume in patients having mitral regurgitation is vital for determining the progression of the disease that in turn is beneficial in determining the optimal time for surgical repair or replacement [9]. Diverse analytic approaches and diagnostic technologies have been proposed to help in the clinical assessment of mitral regurgitation. Nevertheless, all techniques in existence have displayed limitations in one form or another

The aim of this research is to present a new technique based on an Image processing method which can accurately quantify the percentage of backward flow of blood, regurgitant flow rate, regurgitant volume, effective regurgitant orifice area, regurgitant fraction and orifice area in mitral regurgitation by using the Doppler Echocardiography image that works on the color flow Doppler mapping methods like proximal flow convergence. In the pre-processing stage, the color Doppler echocardiography image with RGB color space has been converted into YC C Subsequently it has been b r.. segmented with the aid of non linear anisotropic diffusion method that is used to calculate the percentage of backward flow of blood. The proximal flow convergence method has been exploited to quantify valvular regurgitation by the analysis of the converging flow field proximal to assess the mildness, severity and eccentricity of a mitral regurgitant lesion. Furthermore this research offers a review of Qualitative and quantitative parameters useful in grading the mitral regurgitation severity and utility, advantages, and limitations of Echocardiographic and Doppler parameters used in the evaluation of mitral regurgitation severity.

The paper is organized as follows. Section 1 introduces the concepts and techniques employed in the proposed work. Section 2 discusses the segmentation technique used in mitral regurgitation in detail. The methodology used for the quantification of Mitral Regurgitation is discussed in Section 3. The experimental results and discussions are given in Section 4. Section 5 concludes the paper.

This section gives a brief introduction of the concepts and techniques utilized in the proposed work.

Regurgitation is the backward flowing of Blood (flow of blood in the cardiovascular system) [11]. Mathematically, blood flow is described by Darcy's law (which can be viewed as the fluid equivalent of Ohm's law) and approximately by Hagen-Poiseuille equation.

(1)

(2)

Where F = blood flow, P= pressure, R= resistance, Δ = fluid viscosity, L= length of tube, r= radius of tube. Regurgitation can be categorized into five. They are

• Aortic: the backflow of blood from the aorta into the left ventricle, owing to insufficiency of the aortic semilunar valve; it may be chronic or acute [12].
• Mitral: the backflow of blood from the left ventricle into the left atrium, owing to insufficiency of the mitral valve; it may be acute or chronic, and is usually due to mitral valve prolapse, rheumatic heart disease, or a complication of cardiac dilatation.
• Pulmonic: the backflow of blood from the pulmonary artery into the right ventricle, owing to insufficiency of the pulmonic semilunar valve [10].
• Tricuspid: the backflow of blood from the right ventricle into the right atrium, owing to imperfect functioning (insufficiency) of the tricuspid valve.
• Valvular: regurgitation of the blood through the orifices of the heart valves owing to imperfect closing of the valves; see aortic, mitral, pulmonic, and tricuspid.

Mitral Regurgitation is a kind of Valvular heart disease widely known as mitral insufficiency as well. The heart valve (Mitral) does not function properly because of this disorder thus leading to an abnormal leakage of blood to regurgitate into the left atrium of the heart thereby resulting in ascended blood volume and pressure there. The increased blood pressure in the left atrium results in increased blood pressure in the veins stemming from the lungs to the heart (pulmonary veins) and causes the left atrium to expand to provide room for the extra blood leaking back from the ventricle. The heart's pumping efficiency is reduced due to the extremely enlarged atrium that frequently beats rapidly in an irregular pattern (a disorder called atrial fibrillation) since the fibrillating atrium quivers instead of pumping. Blood flow through the atrium is no longer normal and may cause blood clots inside the chamber. Either a stroke or other damages may be caused as a result of the clotted blood being pumped out of the heart blocking an artery [13].

Heart failure results out of acute regurgitation eventually leading either to increased pressure in the atrium causing fluid accumulation (congestion) in the lungs or the reduced forward flow of blood from the ventricle to the body depriving organs of the proper amount of blood [7]. Heart failure could be worsened further when the left ventricle gradually dilates.

Echocardiography aids in the recognition of abnormalities in heart wall motion and in the measure of volume of blood being pumped from the heart with each beat. Besides, abnormalities in the heart's structure, such as defective heart valves, birth defects, and enlargement of the heart's walls or chambers, as occurs in people with high blood pressure, heart failure, or impairment of the heart's muscular walls (cardiomyopathy) [13] can as well be diagnosed with the aid of Echocardiography.

A methodology that utilizes ultrasound technology to examine the heart is referred to as Doppler echocardiography. An echocardiogram employs high frequency sound waves to generate an image of the heart whereas the speed and direction of blood flow is determined in Doppler technology with the aid of Doppler Effect. A widely used technique for the detection and assessment of the severity of valvular regurgitation is Doppler Echocardiography. Numerous indexes for the assessment of severity of regurgitation using Color Doppler, Pulsed Wave (PW) and Continuous Wave (CW) Doppler have been put forth. The proposed work makes use of Echocardiography image for further investigation and analysis.

Color Doppler is a picture of a blood vessels generated with the aid of standard ultra sound techniques and additionally, a computer transforms the Doppler sounds into colors that are then superimposed on the image of the blood vessel and that characterize the speed and direction of blood flow through the vessel. Detection of regurgitant valve lesions is widely carried out with the aid of Color flow Doppler. The visualization of the origin of the regurgitation jet and its width (vena contracta), the spatial orientation of the regurgitant jet area in the receiving chamber and, in cases of significant regurgitation, flow convergence into the regurgitant orifice (Figure 1) is offered by the color flow Doppler technique. According to the previous experience attention towards the aforesaid three components of the regurgitation lesion by color Doppler- in contradictory to the conventional regurgitant jet area alone- remarkable enhances the overall precision of assessment and quantization of the severity of regurgitation with the aid of color Doppler techniques. The transducer frequency and instrument settings like gain, output power, Nyquist limit, size and depth of the image sector [15] have a considerable influence on the size of the regurgitation jet by color Doppler and its temporal resolution. Thus, it is inevitable that the sonographer and interpreting echocardiographer are completely aware of such issues so as to achieve optimal image acquisition and a greater accuracy of interpretation. The utility, advantages and limitations of Echocardiography and Doppler parameters used in the evaluation of mitral regurgitation severity is shown in the below table (Table 1).

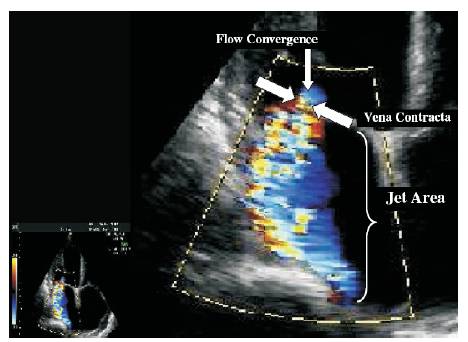

Figure 1. Color flow recording of a mitral regurgitation jet obtained from a zoomed view in the parasternal long axis depicting the 3 components of the regurgitant jet: flow convergence, Vena Contracta (VC), and jet area in the left atrium.

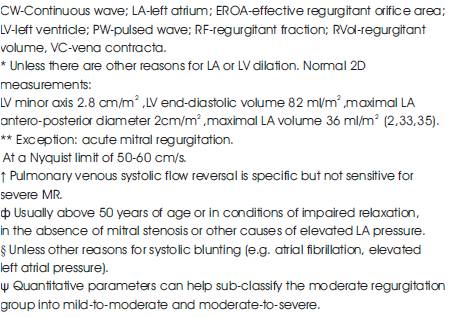

Where CW-Continuous Wave Doppler; Eroa-Effective Regurgitant Orifice Area; LA-Left Atrium; PISA-Proximal Isovelocity / Surface Area, LV-left Ventricle, PW-Pulsed Wave Doppler; MV-Mitral Valve; MR-Mitral Regurgitation; Rvol-Regurgitant Volume.

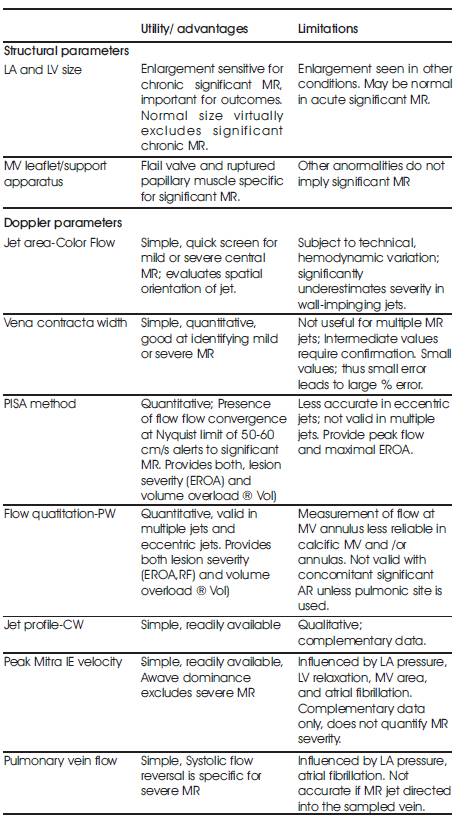

Table 1. Echocardiographic and Doppler parameters used in the evaluation of mitral regurgitation severity: Utility, advantages, and limitations

The process of partitioning an image into several regions where each one is analogous to a homogeneous surface in a scene is known as Image segmentation. Image segmentation is a low-level image processing task, which intends to divide an image into identical regions [16]. Many applications employ the color image segmentation. The identification of regions of interest and objects in the scene is probable from the segmentation results. This is very advantageous to the consequent image analysis or annotation. Observation reveals that most existing segmentation algorithms treat color features independently; however it is possible that the result may contain false counters. Due to the reason that the inherent multi-features not only contain non linear relation individually but also comprise inter-feature dependency between R, G, and B (or Y, C_b , C_r), color image segmentation is more tedious in comparison with grey image segmentation.

In order to accomplish image smoothing and segmentation, numerous models of linear and nonlinear diffusion have been put forth in literature. Numerous researchers [17], [18] have projected nonlinear anisotropic diffusion in their works. A diffusive procedure that is suppressed or stopped at boundaries by selection of locally adaptive diffusion strengths is known as Smoothing. Higher levels of image processing utilize the anisotropic diffusion in the preprocessing stage. The anisotropic diffusion smoothes image interiors to emphasize boundaries for segmentation, eliminates spurious detail to improve the response of edge detection algorithms besides proving efficient at eradicating noise from images [19]. Nevertheless, relaxation processes that implement anisotropic diffusion have a tendency to leave the low frequency objects that are complex to disperse without over-processing the image.

In image processing, anisotropic diffusion is the discretisation of the family of continuous partial differential equations where in both the physical processes of diffusion and the Laplacian are incorporated. Presuming that there no sinks or sources exist [19], for any dimension the aforesaid process can be formulated as the equation given below:

(3)

The diffusion strength is controlled by c(x,t). The spatial coordinate(s) are denoted by vector x .The variable t is an ordering parameter .The function is considered as image intensity I(x,t) [20].

One of the chief goals in clinical cardiology is the estimation of severity of mitral regurgitation. Its severity greatly influences clinical decision making [21]. Numerous echocardiographic techniques have been put forth for enhanced quantification of valvular incompetence [22]. The screening for the existence of mitral regurgitation is commonly carried out with the aid of Color Doppler flow mapping. Prominently, small color flow jets are observed in approximately 40% of healthy normal volunteers and so are regarded as normal variants [23]. Regurgitant jet area, vena contracta, and flow convergence (PISA) are three methods of computing MR severity by color flow Doppler mapping. Even though jet area was the primary method utilized for estimating MR severity it has been found to be less accurate than its latter counterparts and thus the proximal flow convergence method using color Doppler [24], [25] has been recognized as a reliable and accurate quantitative approach

A speedy screening of the presence and direction of the regurgitant jet and a semi-quantitative estimation of its severity can be obtained with the aid of visualization of the regurgitant jet area in the receiving chamber. Various technical, physiologic and anatomic factors have an influence on the size of the regurgitant area and thus modify its accuracy as an index of regurgitation severity [15]. Instrument factors, precisely Pulse Repetition Frequency (PRF) and color gain affect the size of a jet. Nyquist limit (aliasing velocity) of 50-60 cm/sec, and a color gain that just eliminates random color speckle from non-moving regions is made use of in the standard technique.

Commonly, the large jets that extend deep into the Left Atrium (LA) signify more MR than small thin jets that appear just beyond the mitral leaflets. Owing to numerous technical and hemodynamic limitations noted earlier [15] the correlation among jet area and MR severity is poor. Small eccentric color flow jet area might be detected in patients who have low blood pressure and LA pressure due to chronic severe MR whereas the jet area for hypertensive patients with mild MR is huge. The estimation of severity of MR by “eyeballing” or planimetry of the MR color flow jet area only, is not suggested due to the aforesaid considerations. However, small, non-eccentric jets covering an area < 4.0 cm2 or < 20% of LA area trace or mild MR (Table 2) commonly. On the contrary huge jets that penetrate into the pulmonary veins are probably hemodynamically vital.

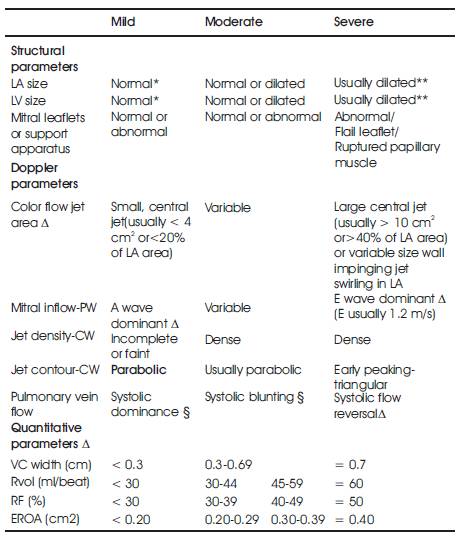

Table 2. Qualitative and quantitative parameters useful in grading mitral regurgitation severity



The narrowest part of a jet that appears at or just downstream from the orifice is referred to as the vena contracta. High velocity and laminar flow are characteristics of the vena contracta. It is smaller than the anatomic regurgitant orifice to some extent due to boundary effects. The cross-sectional area of the vena contracta denotes a measure of the Effective Regurgitant Orifice Area (EROA), the narrowest area of actual flow. The size of the vena contracta is not influenced by the flow rate and driving pressure for a fixed orifice [26].

Nevertheless, the vena contracta is prone to changes with hemodynamics or during the cardiac cycles if the regurgitant orifice is dynamic [27]. The vena contracta needs to be imaged with high-resolution, zoom views so as to acquire the largest obtainable proximal jet size for measurements. The regurgitant orifice in MR might not be circular and is elongated along the mitral coaptation line often. Several studies have shown that the width of the vena contracta is accurate in assessing the severity of MR, either by transthoracic or transesophageal echo- cardiography [28-32]. Numerous studies have revealed that ei ther t rans thoracic or t ransesophageal echocardiography greatly aids in the determination of the width of the vena contracta accurately which in turn is beneficial for assessing the severity of MR [28-32]. The parasternal views aid in the standardization of the width of the vena contracta in long-axis views and its crosssectional area in short-axis views [31]. A vena contracta < 0.3 cm usually indicates mild MR whereas 0.6 to 0.8 cm is the cut off range for severe MR [30-32]. Besides intermediate values tending to correlate well with moderate MR, there arises a need for the utilization of another method for confirmation.

With the assumption that, in the region proximal to a regurgitant orifice, flow is laminar and accelerates smoothly, forming concentric shells of increasing velocity and decreasing surface area, the proximal convergence method is based on the conservation of mass. Hydrodynamic theory assumes that the flow converges toward a restrictive orifice as a series of isovelocity shells with decreasing surface area and increasing velocity [33]. The PISA method is derived from the above mentioned principle. This region of higher velocity and smaller flow dimension is known as vena contracta [37], [28]. Hypothetically, the flow convergence region proximal to a discrete regurgitant orifice in a flat planar surface is a hemispheric volume. The flow in this hemispherical volume accelerates toward the regurgitant orifice along radial streamlines. Concentric hemispheric shells of equal and accelerating velocities (velocity isopleths) [34] constitutes this zone of proximal flow acceleration.

Color flow mapping offers the ability to image one of these hemispheres that corresponds to the Nyquist limit of the instrument. If a Nyquist limit can be chosen at which the flow convergence has a hemispheric shape, flow rate (ml/s) through the regurgitant orifice (RC) is calculated as the product of the surface area of the hemisphere (2πr²) and the aliasing velocity (V_a ) as: (Figure 2).

(4)

Then the regurgitant orifice area is given by

(5)

Where r represents the radial distance from the orifice to the first alias. The maximal is derived with the assumption that the maximal PISA radius occurs at the time of peak regurgitant flow and peak regurgitant velocity:

(6)

Where P_kV_reg is the peak velocity of the regurgitant jet obtained by employing CW Doppler. The product of EROA and the velocity time integral of the regurgitant jet is determined to estimate the regurgitant volume. In this approach, EROA determined is the maximal, EROA which may be slightly larger than EROA calculated by other methods, due to the fact that the PISA calculation proffers an instantaneous peak flow rate. According to the continuity principle, blood flow passing through a given hemisphere needs to pass through the narrowed orifice ultimately [21], [36]. Thus, the flow rate through any given hemisphere and the flow rate through the narrowed orifice must be equivalent:

(7)

Where A_o represents the area of the narrowed orifice (cm²), V_o represents the peak velocity through the narrowed orifice (cm/s). Thus, the area through the narrowed orifice A_o can be calculated by rearranging the  equation (6),

(8)

As mentioned earlier, the regurgitant volume through an incompetent valve and the flow at the regurgitant orifice are equal [38]. Hence, the regurgitant volume can also be calculated from the and the of the regurgitant signal as given below (see Figure 2), with the assumption that the regurgitant orifice does not change throughout the period of regurgitant flow:

(9)

Where R_vol represents regurgitant volume (cc), ROA represents effective regurgitant orifice (cm² ), VTI_RJ represents velocity time integral of regurgitant jet signal (cm). The regurgitant volume is deliberated from the simplified method when the mitral regurgitation is eccentric. In this case, the ratio between maximum mitral regurgitant velocity and the VTI of the regurgitant signal is 3.25. Thus the regurgitant volume is estimated from the regurgitant flow rate and the constant.

(10)

Regurgitant Fraction (RF) was expressed as the percent of regurgitant volume (R_vol ) divided by the total stroke volume at the mitral annulus level. The regurgitant fraction would be described as:

(11)

Where Forward Flow Through The Mitral Value= Mitral orifice area (2πr²) x Diastolic velocity integral and Flow Through The Aortic Value = Aortic orifice area (πd²/4) x Systolic velocity integral and the velocity integral of the regurgitant signal is considered to be 3.25.

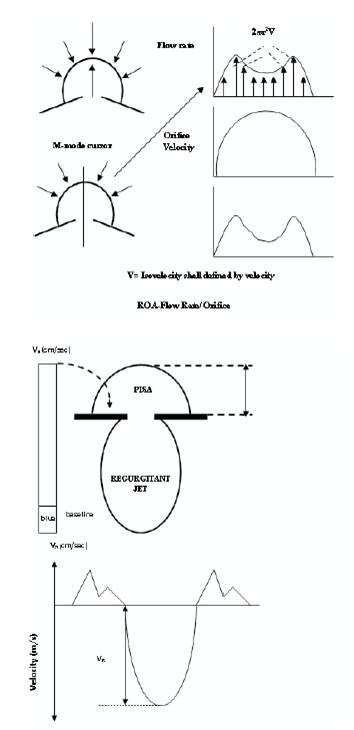

Figure 2. Schematic representation of proximal flow convergence and the regurgitant jet used for the measurement of Effective Regurgitant Orifice Area (EROA) and regurgitant volume.

Let us consider a high-quality color Doppler flow images of the flow convergence region with at least one alias were obtained for the calculation of regurgitant flow rate, effective regurgitant flow rate, regurgitant volume and the percentage of backward flow of blood in Mitral regurgitation.

In the preprocessing stage, the color Doppler images with RGB color space is converted into YC_bC_r color space.  Followed by, in the second stage, the converted color space image is segmented using non linear anisotropic diffusion method which is used to segment the color spaces exactly. With this the percentage of backward blood flow in mitral regurgitation has been calculated.

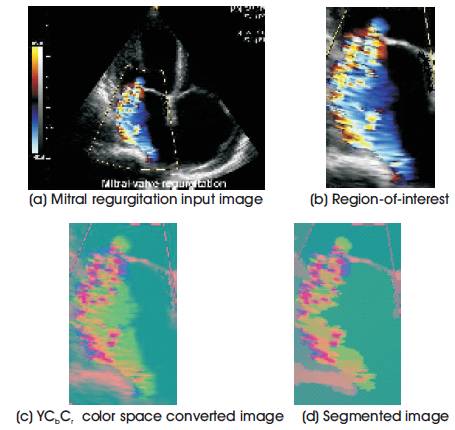

Figure 3. Output representation of anisotropic diffusion segmentation process

The research shows that the effective calculated based on the analysis of the proximal flow convergence zone, displayed by color Doppler flow mapping image, is feasible and correlates very closely with the true effective regurgitant orifice for a range of different orifice. To apply proximal flow convergence method in the clinical setting, we have calculated effective based on the analysis of the proximal flow convergence zone with mitral regurgitation. The effective measurements of above mentioned parameters for Mild, Severe centric and severe Eccentric mitral regurgitation are detailed in the below Table 3 and the color Doppler images used for the quantification of mitral regurgitation is given in Figure 4.

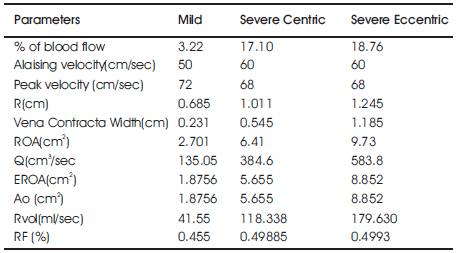

Table 3. Measured values of the above mentioned parameters of Mild, severe Centric and Severe Eccentric Mitral Regurgitation

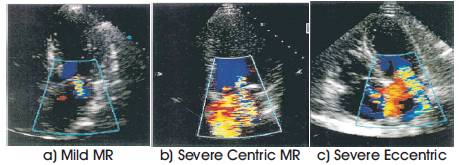

Figure 4. Mitral regurgitation color Doppler images used for Quantification.

Basically, the hemodynamic estimation of valvular regurgitation is restricted to a semi quantitative grading of invasive or noninvasive parameters which have exposed some correlation with the regurgitant volume. Furthermore, the regurgitant stroke volume, regurgitant flow rate, or regurgitant fraction is determined with the aid of quantitative angiographic technique or the newly developed quantitative color Doppler flow methods [39].

According to our research, has been established as the elementary parameter in the estimation of valvular incompetence [31]. In contrast to the stenotic valve area has not been extensively utilized in clinical practice. Nonetheless, lately, the proximal flow convergence method has been put forth as a potential procedure to quantitate regurgitant lesions [33]. Besides supporting the calculation of regurgitant volume and regurgitant flow rate, this technique also aids in obtaining the. With the aid of the principle of conservation of mass, it is possible to determine the instantaneous orifice flow rate on basis of the examination of the converging flow field adjacent to the orifice [34]. The division of orifice flow rate by the orifice velocity measured with the aid of continuous wave Doppler gives the effective [28]. We validated the concept in an in vitro model and estimated the accuracy of the orifice area computations for diverse sized circular orifices all over a range of clinically relevant driving pressures in the proposed research.

Regulation of aliasing velocity so as to obtain a well defined hemisphere is inevitable in the measurement of PISA with color flow mapping. This can be achieved either by shifting the baseline in the direction of flow, or by bringing down the Nyquist limit, or both (the latter reduces the wall filter, whereas the former does not) [40]. When the base of the hemisphere is not a flat (180^o ) the adhustment for wall constraint needs to be carried out multiplying by the ratio of the angle created by the walls contiguous to the regurgitant orifice and 180 degrees. There has been a proven increase in the reliability of measurement carried out with the aforesaid process [14].

Initially it is necessary that the flow converges in the direction of the orifice in a regular way with symmetric zones in three-dimensional space where it attains a specified velocity. Convective acceleration is considered as the reason behind the increase in velocity of the flow as it proceeds towards the orifice and this is supposed to create numerous isovelocity hemispheres comprising of proportionally higher velocities as their surface areas descend near the orifice. Nonetheless the original situation is more complex. Viscous forces are considered significant predominantly in the area along the left ventricular side of the mitral valve leaflets that lie perpendicular to the regurgitant orifice. A boundary layer of low velocity flow might result due to viscous forces besides a decrease in the effective surface area of the implicit isovelocity hemisphere. Flow progresses at an angle to the direction of examination on axial images and may cause the underestimation of velocities. Here, we determine the radial distance r with the velocity acquired from the isovelocity hemisphere. This might be responsible for the estimation of flow rate when the first alias was nearer to the orifice. The results of proposed research put forward that the supposition of an isovelocity hemisphere is applicable in the flow convergence zone far away from the orifice where precise estimates of flow rate were achieved. With the aid of these precise measurements we determine the flow rate, effective regurgitant orifice area and the regurgitant volume by utilizing flow convergence method in the mitral regurgitation.

An evaluation of the limitations of PISA has been carried out [35]. It has been found to be more precise for eccentric jets, and for regurgitation having a circular orifice. The effortless identification of the aliasing line of the hemisphere can be done once the image resolution supports the flow convergence to be clearly visible and a Nyquist limit is chosen such that the flow convergence has a hemispheric shape. Nevertheless the prediction of the the precise location of the orifice and the flow convergence is not as easy as it sounds. If any error is introduced it gets squared and eventually affects the resulting flow rate and EROA in a remarkable manner. Besides the fact that these methods have potential, further experiments are necessary.

To summarize, it has been demonstrated that quantitative assessment of the valve regurgitation is achievable with the aid of Doppler flow mapping of the zone of flow convergence proximal to a regurgitant orifice. The utilization of flow convergence region might seem more attractive on theoretical basis rather than the utilization of the features of a turbulent downstream jet. The application of flow convergence region for quantitative analysis need not be restricted to the valve regurgitation rather can be applied to any sort of restrictive orifice lesion.

The precise determination of the severity of the disease is of vital significance with regard to the clinical decision making process for mitral regurgitation. The possibility of surgery necessitates confirmation of severity by a complementary procedure. Nonetheless, currently mitral regurgitation has no gold standard to compare the quantification the regurgitant volume, flow rate and the like. A novel approach that could precisely and safely quantify mitral regurgitation in theory with the aid of proximal flow convergence method has been proposed in this paper. A comparatively greater accuracy was obtained in the quantification mitral regurgitation Doppler image due to the anisotropic diffusion segmentation in the preprocessing stage. We would conclude from our researchers that determination of cardiac output noninvasively by Doppler echocardiography with the aid of the flow convergence method is beneficial. Experimental results have been found to correlate with the several other procedures in existence for cardiac output measurement.

The dynamic nature of lesion and the influence of various hemodynamic and physiologic conditions on it pose a huge challenge for most of the diagnostic techniques working on regurgitation. A comparison of sequential images can now be carried out readily alongside for a more accurate estimation of interval change in the aforesaid adaptive processes and for enhanced timing to carry out the surgery with the aid of the advancements in digital echocardiography. The developments in imaging technologies would facilitate the availability of spatial distribution of the valve regurgitation readily so as to improve measurements of flow convergence, vena contracta and the regurgitant eventually leading to enhancements in the quantization of valvular regurgitation. The future enhancements of the proposed work may provide an accurate non-invasive method to quantify mitral regurgitation.
